V.10

Full-range, passive two-way system
KTV specific voicing
Enhanced bass response from rear port
LF driver with demodulating ring for distortion-free vocals
User-rotatable horn
Vertical and horizontal mounting option
Cloth-backed perforated steel grille
Trapezoid enclosure with textured finish
8Ω nominal impedance
Internal crossover network with LF and HF driver protection
Twin NL4 connectors
Multiple M8 rigging inserts

Chi tiết sản phẩm

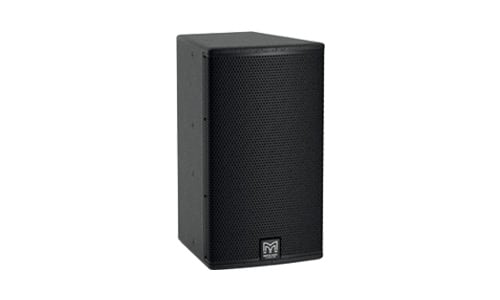

Model: V.10

Overview

With the new V·Series, Martin Audio engineers have designed a range of premium full-range loudspeakers specifically for small-medium scale entertainment installations and family KTV. Three, passive two-way systems — the V.10, V.12 and V.15 —combine the Martin Audio signature sound of warmth, clarity and smooth response with the vocal presence required for a great Karaoke experience.

Thông số kỹ thuật

TYPE	Compact, passive two-way system
FREQUENCY RESPONSE (5)	65Hz-20kHz ± 3dB, -10dB @ 49Hz
DRIVER	LF: 10” (250mm)/2.5” (63.5mm) voice coil,ferrite motor system HF: 1” (25mm) exit/1.4” (35mm) voice coil, polyimide dome compression driver
RATED POWER (2)	500W program, 1000W peak
SENSITIVITY (8)	98dB
MAXIMUM SPL (9)	125dB program, 128dB peak
NOMINAL IMPEDANCE	8Ω
DISPERSION (-6DB)	90° H x 50° V (user-rotatable)
CROSSOVER	2.8kHz passive
ENCLOSURE	Trapezoid
FINISH	Black textured paint
PROTECTIVE GRILLE	Black perforated steel with scrim cloth backing
CONNECTORS	2 x NL4 type
PIN CONNECTIONS (INPUT)	1+/1-
PIN CONNECTIONS (LINK)	1+/- to 1+/-
FITTINGS	14 x M8 inserts
DIMENSIONS	(W) 300mm x (H) 530 x (D) 345mm (W) 11.8ins x (H) 20.9ins x (D) 13.6ins
WEIGHT	16kg (35.3lbs)
