Ultra-Compact, CDD™ passive two-way system
Coaxial Differential Dispersion™ technology
Elegant UPM Formi composite enclosure
User-rotatable coaxial drive unit
Vertical and horizontal mounting options
Screw-free perforated steel grille
8Ω nominal impedance
Discreet mounting accessories
Black or white standard colour options

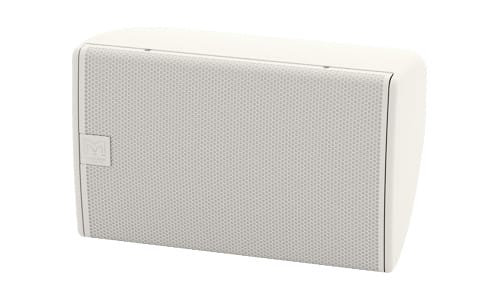

Model: CDD8
Overview
The CDD8 is an ultra-compact two-way passive loudspeaker system with an integrated 8” (200mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver which can be easily rotated for horizontal or vertical orientation depending on venue design requirements. Its small size gives no indication of its high output capability. As a stand-alone loudspeaker, it has a multitude of applications and can also be incorporated as an infill loudspeaker in distributed systems using larger CDD models, such as the CDD12 and CDD15.
Thông số kỹ thuật
| TYPE | Ultra-Compact, Coaxial Differential Dispersion passive two-way system |
| FREQUENCY RESPONSE (5) | 70Hz-20kHz ± 3dB, -10dB @ 55Hz |
| DRIVER | LF: 8” (200mm)/2” (50mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver |
| RATED POWER (2) | 200W AES, 800W peak |
| SENSITIVITY (8) | 94dB |
| MAXIMUM SPL (9) | 117dB continuous, 123dB peak |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6DB) | 110˚-80˚ horizontal, 60˚ vertical (user-rotatable) |
| CROSSOVER | 2.3kHz passive |
| ENCLOSURE | 14 litre, composite material |
| FINISH | Black or white textured paint |
| PROTECTIVE GRILLE | Black or white perforated steel with scrim cloth backing |
| CONNECTORS | Low profile 13A push-lock |
| PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link + |
| FITTINGS | 6 x M6 inserts for wall/ceiling brackets |
| DIMENSIONS | (W) 256mm x (H) 410mm x (D) 252mm (W) 10.1ins x (H) 16.1ins x (D) 9.9ins |
| WEIGHT | 9.5kg (21lbs) |
