Ultra-Compact, CDD™ passive two-way system
Coaxial Differential Dispersion™ technology
Elegant UPM Formi composite enclosure
Outdoor operation when sheltered from direct exposure to elements
Operating temperature -20°C to +70°C
Environmentally tested to meet IP54
User-rotatable coaxial drive unit
Vertical and horizontal mounting options
Screw-free water and particle resistant grille
8Ω nominal impedance
Discreet weatherised mounting accessories
Black or white standard colour options
70V/100V line transformer

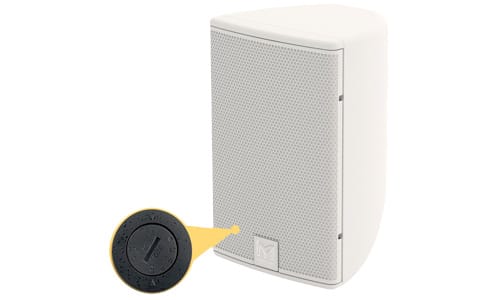

Model: CDD6TX-WR
Overview
The CDD6TX-WR is a weatherised two-way passive micro speaker incorporating a 70V/100V line transformer and designed for discreet positioning in architectural installations — including bars, museums, foyers, concourses, exhibition centres and HoW as well as outdoor applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements. It can reproduce surprisingly high levels of music program and can also be used as a fill system in conjunction with larger CDD Series. It features a 6.5” (165mm) LF/1” (25mm) HF Coaxial Differential Dispersion driver inside an elegant UPM Formi composite enclosure with a dual cable gland for easy daisy-chaining of cabinets without the need for external breakout boxes.
Thông số kỹ thuật
| TYPE | Ultra-Compact, Coaxial Differential Dispersion passive two-way system |
| FREQUENCY RESPONSE (5) | 80Hz-20kHz ± -10dB @ 70Hz |
| DRIVER | LF: 6.5” (165mm)/1.5” (38mm) voice coil, long excursion, ferrite motor system HF: 1” (25mm) voice coil, fabric dome with neodymium motor system |
| RATED POWER (2) | 150W AES, 600W peak |
| TRANSFORMER SETTINGS | 100V line: 12.5W, 25W, 50W 70V line: 6.5W, 12.5W, 25W, 50W |
| SENSITIVITY (8) | 91dB |
| MAXIMUM SPL (9) | 113dB continuous, 119dB peak 6.2W=99dB, 12.5W=102dB, 25W=105dB, 50W=108dB. |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6DB) | 110°-80° horizontal, 80° vertical (user-rotatable) |
| CROSSOVER | 2.5kHz passive |
| ENCLOSURE | 9 litre, composite material |
| FINISH | Black or white as standard |
| PROTECTIVE GRILLE | Zinc plated mild steel with powder coated finish and weatherised backing |
| ENVIRONMENTAL | Rated at IP54 |
| CONNECTORS | Low profile 13A push-lock, weatherproof input panel cover with dual cable glands |
| PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link + |
| FITTINGS | 4 x M6 inserts for wall/ceiling brackets |
| DIMENSIONS | (W) 210mm x (H) 325mm x (D) 210mm (W) 8.3ins x (H) 12.8ins x (D) 8.3ins |
| WEIGHT | 6.77kg (14.93lbs) |
