Compact, CDD™ passive two-way system
Coaxial Differential Dispersion™ technology
Elegant UPM Formi composite enclosure
Outdoor operation when sheltered from direct exposure to elements
Operating temperature -20°C to +70°C
Environmentally tested to meet IP54
User-rotatable coaxial drive unit
Vertical and horizontal mounting options
Screw-free water and particle resistant grille
8Ω nominal impedance
Integral inserts for eyebolt suspension
Discreet weatherised mounting accessories
Black or white standard colour options

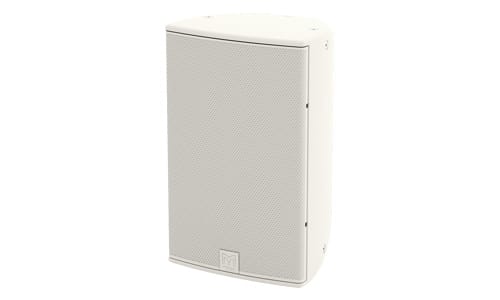

Model: CDD12-WR
Overview
The CDD12-WR is a weatherised compact, passive two-way system designed for installations that require high output levels suitable for outdoor applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements. Its high-specification 12” (300mm) LF /1” exit HF Coaxial Differential Dispersion driver delivers perfect sound across the audience over medium-throw distances. It features a water and particle resistant grille made from zinc plated mild steel with powder coated finish and is suitable for operating temperatures between -20°C to +70°C and environmentally tested to meet IP54.
Thông số kỹ thuật
| TYPE | Compact, high-output, Coaxial Differential Dispersion passive two-way system |
| FREQUENCY RESPONSE (5) | 62Hz-20kHz ± 3dB -10dB @ 50Hz |
| DRIVER | LF: 12” (300mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver |
| RATED POWER (2) | 300W AES, 1200W peak |
| SENSITIVITY (8) | 97dB |
| MAXIMUM SPL (9) | 122dB continuous, 128dB peak |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6DB) | 110˚-60˚ horizontal, 60˚ vertical (user-rotatable) |
| CROSSOVER | 1.9kHz passive |
| ENCLOSURE | 38 litre, composite material |
| FINISH | Black or white as standard |
| PROTECTIVE GRILLE | Zinc plated mild steel with powder coated finish and weatherised backing |
| ENVIRONMENTAL | Rated at IP54 |
| CONNECTORS | Low profile 20A push-lock, weatherproof input panel cover with cable gland |
| PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link+ |
| FITTINGS | 6 x M8 inserts for wall bracket 10 x M8 fly points |
| DIMENSIONS | (W) 360mm x (H) 571mm x (D) 350mm (W) 14.2ins x (H) 22.5ins x (D) 13.8ins |
| WEIGHT | 19.8kg (43.65lbs) |
