Compact, CDD™ passive two-way system
Coaxial Differential Dispersion™ technology
Elegant UPM Formi composite enclosure
User-rotatable coaxial drive unit
Vertical and horizontal mounting options
Screw-free perforated steel grille
8Ω nominal impedance
Discreet mounting accessories
Integral inserts for eyebolt suspension
Black or white standard colour options

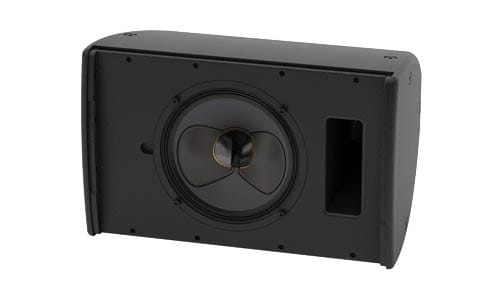

Model: CDD10
Overview
The CDD10 is a very compact two-way passive loudspeaker system which utilises a 10” (250mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion driver. It is uniquely placed to meet the foreground requirements of music bars and clubs, as well as the varied architectural applications that require upfront sound levels from a very compact enclosure. Use with a SX118 or CX218 subwoofer will enable the CDD10 to operate as small dancefloor system that is remarkably powerful for its size.
Thông số kỹ thuật
| TYPE | Compact, Coaxial Differential Dispersion passive two-way system |
| FREQUENCY RESPONSE (5) | 65Hz-20kHz ± 3dB, -10dB @ 55Hz |
| DRIVER | LF: 10” (250mm)/2.5” (63.5mm) voice coil, long excursion, shared ferrite motor with HF HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver |
| RATED POWER (2) | 250W AES, 1000W peak |
| SENSITIVITY (8) | 96dB |
| MAXIMUM SPL (9) | 120dB continuous, 126dB peak |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6DB) | 110˚-75˚ horizontal, 60˚ vertical (user-rotatable) |
| CROSSOVER | 2kHz passive |
| ENCLOSURE | 28 litre, composite material |
| FINISH | Black or white textured paint |
| PROTECTIVE GRILLE | Black or white perforated steel with scrim cloth backing |
| CONNECTORS | Low profile 20A push-lock |
| PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link+ |
| FITTINGS | 6 x M8 inserts for wall bracket 10 x M8 fly points |
| DIMENSIONS | (W) 323mm x (H) 513mm x (D) 310mm (W) 12.7ins x (H) 20.2ins x (D) 12.2ins |
| WEIGHT | 15.3kg (33.7lbs) |
