Ultra-Compact passive two-way system
Symmetrical multi-angle plywood enclosure
User-rotatable 90° x 50° horn
Vertical and horizontal orientation
Screw-free, cloth-backed perforated steel grille
Integral ergonomic handle
Pole-mount bung maintains clean lines
8Ω nominal impedance
Twin NL4 connectors
Flexible mounting options via M8 inserts

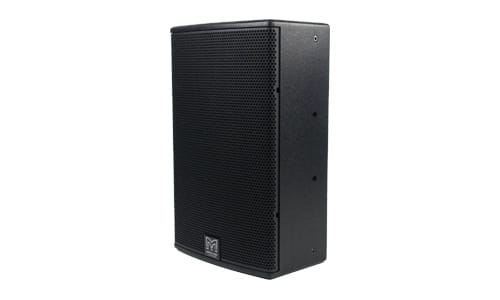

Model: Blackline X8
Overview
As a stand-alone loudspeaker, it has a multitude of professional applications — from distributed sound reinforcement, HoW and AV events to frontfill/infill and use as a micro stage monitor. Complemented by a BlacklineX subwoofer, it is the ideal, simple-to-use system for portable applications and installations which call for an unobtrusive system that can deliver pristine sound over short and medium throw distances.
The Blackline X8 is constructed from plywood and fitted with a screw-free steel grille, M8 inserts for wall brackets and eyebolt suspension, plus a pole-mount socket with a removable bung that maintains clean lines in install applications. Finished in black textured paint.
A full-range passive two-way system, the X8 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.4 or DX0.6 will maximise its capabilities and provide crossover functions when used with a subwoofer such as the X115, X118 or X210.
Thông số kỹ thuật
TYPE | Ultra-Compact, passive two-way system |
FREQUENCY RESPONSE (5) | 70Hz-20kHz ± 3dB, -10dB @ 60Hz |
DRIVER | LF: 8” (200mm)/2” (50mm) voice coil, ferrite motor system HF: 1” (25mm) exit/1” (25mm) voice coil, polyimide dome compression driver |
RATED POWER (2) | 200W AES, 800W peak |
SENSITIVITY (8) | 92dB |
MAXIMUM SPL (9) | 115dB continuous, 121dB peak |
NOMINAL IMPEDANCE | 8Ω |
DISPERSION (-6DB) | 90° H x 50° V (user-rotatable) |
CROSSOVER | 2.9kHz passive |
ENCLOSURE | Multi-angle birch/poplar ply |
FINISH | Black textured paint |
PROTECTIVE GRILLE | Black perforated steel with scrim cloth backing |
CONNECTORS | 2 x NL4 type |
PIN CONNECTIONS (INPUT) | 1+/1- |
PIN CONNECTIONS (LINK) | 1+/- to 1+/- |
FITTINGS | 13 x M8, 6 x M6 inserts, pole-mount socket, 1 x pocket handle |
DIMENSIONS | (W) 257mm x (H) 422mm x (D) 243mm (W) 10.1ins x (H) 16.6ins x (D) 9.6ins |
WEIGHT | 8kg (17.6lbs) |
ACCESSORIES | Wall bracket, eyebolts |
