High power, passive two-way system
Symmetrical multi-angle plywood enclosure
User-rotatable 80° x 50° horn
Vertical and horizontal orientation
Screw-free, cloth-backed perforated steel grille
Integral ergonomic handle
Pole-mount bung maintains clean lines
8Ω nominal impedance
Twin NL4 connectors
Flexible mounting options via M8 inserts

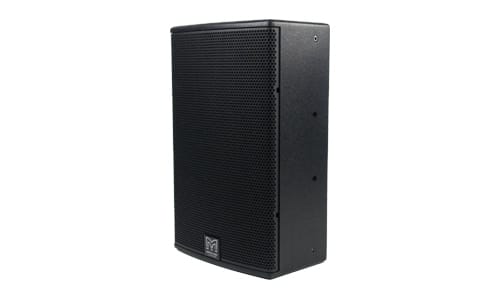

Model: Blackline X15
Overview
Featuring a powerful 15” (380mm)/3” (75mm) voice coil LF drive unit, and a 1” (25mm) exit HF compression driver with a 1.75” (44mm) polyimide diaphragm for extended high frequency response.
The X15 is constructed from plywood and fitted with a screw-free steel grille, M8 inserts for a wall bracket and eyebolt suspension, plus a pole-mount socket with a removable bung that maintains clean lines in install applications. Finished in black textured paint.
A full-range passive two-way system, the X15 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.4 or DX0.6 will maximise its capabilities and provide crossover functions when used with a subwoofer such as the X115, X118 or X210.
Thông số kỹ thuật
| TYPE | High-power, passive two-way system |
| FREQUENCY RESPONSE (5) | 55Hz-20kHz ± 3dB, -10dB @ 45Hz |
| DRIVER | LF: 15” (380mm)/3” (75mm) voice coil, ferrite motor system HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver |
| RATED POWER (2) | 400W AES, 1600W peak |
| SENSITIVITY (8) | 99dB |
| MAXIMUM SPL (9) | 125dB continuous, 131dB peak |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6DB) | 80° H x 50° V (user-rotatable) |
| CROSSOVER | 2.2kHz passive |
| ENCLOSURE | Multi-angle birch/poplar ply |
| FINISH | Black textured paint |
| PROTECTIVE GRILLE | Black perforated steel with scrim cloth backing |
| CONNECTORS | 2 x NL4 type |
| PIN CONNECTIONS (INPUT) | 1+/1- |
| PIN CONNECTIONS (LINK) | 1+/- to 1+/- |
| FITTINGS | 19 x M8 inserts, pole-mount socket, 2 x bar handles |
| DIMENSIONS | (W) 427mm x (H) 690mm x (D) 419mm (W) 16.8ins x (H) 27.2ins x (D) 16.5ins |
| WEIGHT | 24kg (52.9lbs) |
| ACCESSORIES | Eyebolts |
