Compact passive two-way system
Symmetrical multi-angle plywood enclosure
User-rotatable 90° x 50° horn
Vertical and horizontal orientation
Screw-free, cloth-backed perforated steel grille
Integral ergonomic handle
Pole-mount bung maintains clean lines
8Ω nominal impedance
Twin NL4 connectors
Flexible mounting options via M8 inserts

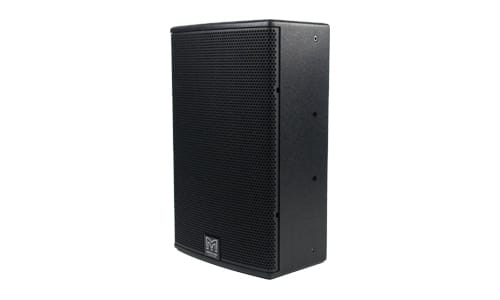

Model: Blackline X12
Overview
The Blackline X12 LF driver has a 2.5” (63mm) voice coil and a high BL motor, while the HF compression driver utilises a 1.75” (44mm) poly-imide diaphragm for extended high frequency response. Use with a BlacklineX Series subwoofer will enable the X12 to operate as a dancefloor or sound reinforcement system that is remarkably powerful for its size, as well as being extremely portable.
The X12 is constructed from plywood and fitted with a screw-free steel grille, M8 inserts for wall brackets and eyebolt suspension, plus a pole-mount socket with a removable bung that maintains clean lines in install applications. Finished in black textured paint.
A full-range passive two-way system, the X12 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.4 or DX0.6 will maximise its capabilities and provide crossover functions when used with a subwoofer such as the X115, X118 or X210
Thông số kỹ thuật
| TYPE | Compact, passive two-way system |
| FREQUENCY RESPONSE (5) | 62Hz-20kHz ± 3dB, -10dB @ 50Hz |
| DRIVER | LF: 12” (300mm)/2.5” (63.5mm) voice coil, ferrite motor system HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver |
| RATED POWER (2) | 300W AES, 1200W peak |
| SENSITIVITY (8) | 97dB |
| MAXIMUM SPL (9) | 122dB continuous, 128dB peak |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6DB) | 80° H x 50° V (user-rotatable) |
| CROSSOVER | 2.3kHz passive |
| ENCLOSURE | Multi-angle birch/poplar ply |
| FINISH | Black textured paint |
| PROTECTIVE GRILLE | Black perforated steel with scrim cloth backing |
| CONNECTORS | 2 x NL4 type |
| PIN CONNECTIONS (INPUT) | 1+/1- |
| PIN CONNECTIONS (LINK) | 1+/- to 1+/- |
| FITTINGS | 20 x M8 inserts, pole-mount socket, 1 x bar handle |
| DIMENSIONS | (W) 358mm x (H) 574mm x (D) 337mm (W) 14.1ins x (H) 22.6ins x (D) 13.7ins |
| WEIGHT | 17kg (37.5lbs) |
| ACCESSORIES | Wall bracket, eyebolts |
