Blackline X10

Blackline X10

Compact passive two-way system
Symmetrical multi-angle plywood enclosure
User-rotatable 90° x 50° horn
Vertical and horizontal orientation
Screw-free, cloth-backed perforated steel grille
Integral ergonomic handle
Pole-mount bung maintains clean lines
8Ω nominal impedance
Twin NL4 connectors
Flexible mounting options via M8 inserts

Chi tiết sản phẩm

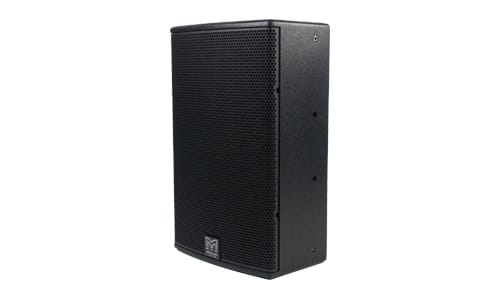

Model: Blackline X10

Overview

It has a multitude of professional applications — from distributed sound reinforcement, HoW and AV events to frontfill/infill and use as an unobtrusive stage monitor. With a maximum SPL of 124dB @ 1m, it is uniquely placed to meet the foreground requirements of music bars and clubs that require upfront sound levels from a very compact enclosure. Use with a BlacklineX Series subwoofer will enable the X10 to operate as small dancefloor or sound reinforcement system that is remarkably powerful for its size, as well as being extremely portable.

The X10 is constructed from plywood and fitted with a screw-free steel grille, M8 inserts for wall brackets and eyebolt suspension, plus a pole-mount socket with a removable bung that maintains clean lines in install applications. Finished in black textured paint.

A full-range passive two-way system, the X10 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.4 or DX0.6 will maximise its capabilities and provide crossover functions when used with a subwoofer such as the X115, X118 or X210.

Thông số kỹ thuật

TYPE Compact, passive two-way system
FREQUENCY RESPONSE (5) 65Hz-20kHz ± 3dB, -10dB @ 55Hz
DRIVER LF: 10” (250mm)/2.5” (63.5mm) voice coil, ferrite motor system
HF: 1” (25mm) exit/1.4” (35mm) voice coil, polyimide dome compression driver
RATED POWER (2) 250W AES, 1000W peak
SENSITIVITY (8) 94dB
MAXIMUM SPL (9) 118dB continuous, 124dB peak
NOMINAL IMPEDANCE
DISPERSION (-6DB) 90° H x 50° V (user-rotatable)
CROSSOVER 2.4kHz passive
ENCLOSURE Multi-angle birch/poplar ply
FINISH Black textured paint
PROTECTIVE GRILLE Black perforated steel with scrim cloth backing
CONNECTORS 2 x NL4 type
PIN CONNECTIONS (INPUT) 1+/1-
PIN CONNECTIONS (LINK) 1+/- to 1+/-
FITTINGS 19 x M8 inserts, pole-mount socket, 1 x bar handle
DIMENSIONS (W) 324mm x (H) 522mm x (D) 289mm
(W) 12.8ins x (H) 20.6ins x (D) 11.4ins
WEIGHT 14kg (30.9lbs)
ACCESSORIES Wall bracket, eyebolts
